Aerosol tin can, also called three-piece can. A can-type packaging container formed by using a metal sheet as a material through compression bonding, resistance welding, and resistance welding, is composed of a can body, a bottom, and a top.

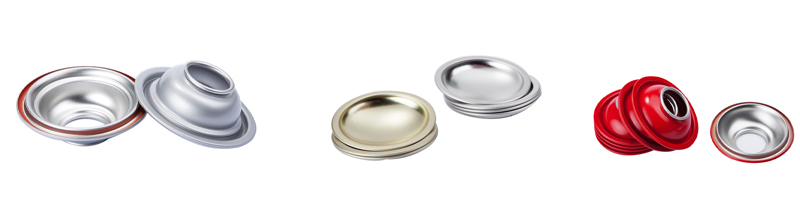

There are many types top and bottom for different size cans.
For the tops, we can do outside gold lacquered with inside clear lacquered/ outside clear lacquered with inside gold lacquered/ both sides clear lacquered/ both sides gold lacquered.
For the bottoms, we can make outside clear lacquered with inside plain/ outside gold lacquered with inside plain/ outside clear lacquered with inside gold lacquered/ outside gold lacquered with inside gold lacquered.
Diameter of can |
Can Components Code |
Top or Bottom |
Ф45
|
185 |
Top |
190 |
Bottom |
|
Ф52 |
195 |
Top |
200 |
Bottom |
|
Ф57 |
201 |
Top |
203 |
Bottom |
|
Ф60 |
205 |
Top |
206 |
Bottom |
|
Ф65 |
207.5A |
Top |
207.5B |
Top |
|
207.5C |
Top |
|
209 |
Bottom |
|
Ф57 |
211 |
Top |
211 |
Bottom |
|
Ф70 |
211 |
Top |
213 |
Bottom |

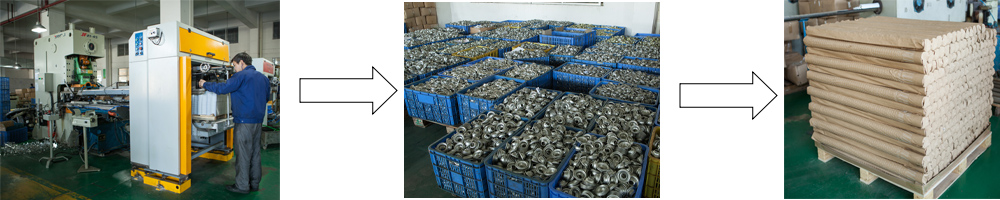

Production process of can top:
Iron Cutting→Oil coating→punching cover→round edge→glue injection-drying curing.

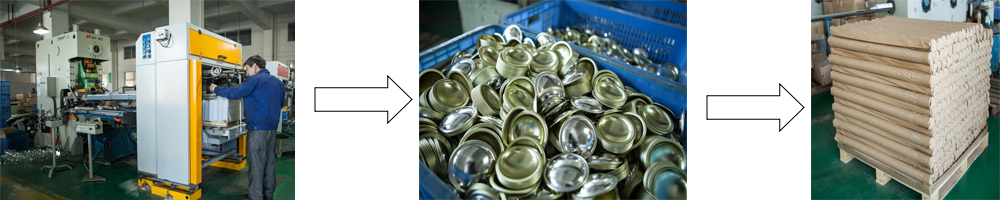

Production process of can bottom:
Iron Cutting→Oil coating→punching cover→glue injection-drying curing.
